Advancing LC3 Cement Technology for Sustainable Construction in India

Introduction

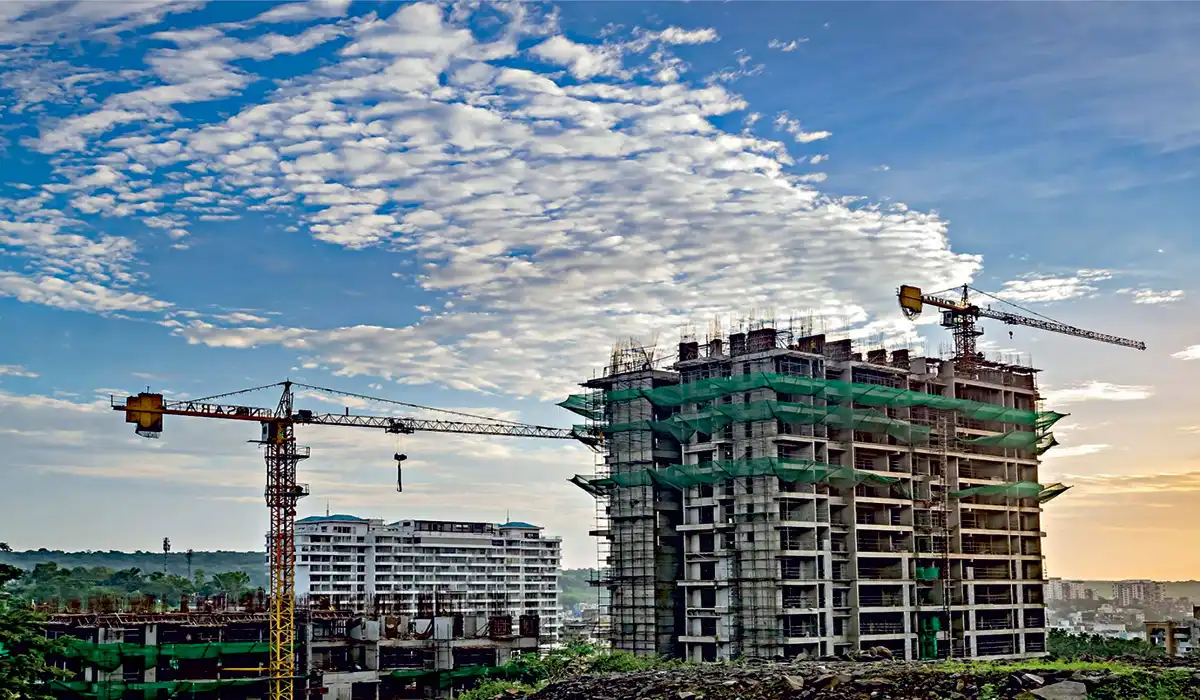

Picture courtesy: Jindal Infrastructure

Cement production remains a carbon-intensive process, with the global industry responsible for roughly 2.9 billion tons of CO2 emissions annually. The global cement industry faces intense pressure to reduce its carbon footprint, with nearly 8% of global CO2 emissions stemming from cement production. LC3 (Limestone Calcined Clay Cement) offers a promising path forward, potentially reducing CO2 emissions by up to 40% through clinker substitution.

Recent efforts toward sustainability, driven by regulatory pressures, environmental goals, and climate commitments, have led to the exploration of alternatives to Ordinary Portland Cement (OPC). LC3 (Limestone Calcined Clay Cement), which combines clinker, calcined clay, and limestone, has emerged as one of the most promising low-carbon cement formulations. By replacing up to 60% of clinkers with low-carbon materials, LC3 reduces carbon emissions by 30-40%, providing a significant boost to sustainability efforts.

However, despite LC3’s advantages, its large-scale adoption faces both technical and market challenges. This paper critically examines the potential of LC3 cement, analyzing its chemistry, global market readiness, technical performance, and success stories from across the world. It also identifies the existing gaps in research and technology, while proposing future directions for overcoming these challenges.

The Chemistry of LC3: A Pathway to CO2 Reduction

Clinker Substitution and Its Impact on CO2 Emissions

The environmental benefit of LC3 lies primarily in its ability to reduce the clinker factor. Typically, LC3 formulations replace 50-60% of the clinker content with calcined clay and limestone. As clinker production is the most energy-intensive and carbon-emitting part of cement manufacturing, this substitution alone can lead to a 30-40% reduction in CO2 emissions.

A typical tonne of OPC generates around 850 kg of CO2, but for LC3, this figure can be reduced to as low as 500 kg, depending on the specific composition and production conditions.

Figure 1: Limestone, Calcined Clay Cement

Detailed Chemistry of LC3

LC3 relies on the synergistic reaction between calcined clay, specifically kaolinitic clay, and limestone. Calcined clay contributes both pozzolanic activity and filler effects, while limestone reacts with aluminates to form carboaluminates, which enhance the strength and durability of concrete. The hydration of clinker in LC3 produces calcium hydroxide, which reacts with the metakaolin in calcined clay to form additional calcium silicate hydrates (C-S-H). These pozzolanic and carbonate reactions contribute to the strength and long-term performance of LC3 concrete, even with a reduced clinker content.

One of the main technical challenges is ensuring the phase compositions are controlled to optimize strength development. Too much ettringite formation, for example, can weaken early-age strength, so it is critical to strike a balance between the reactive aluminates and carbonates.

Figure 2: Composition and Technology of LC3

Research Advances and Technical Performance of LC3

Compressive Strength and Long-term Durability

LC3 formulations typically demonstrate comparable long-term compressive strengths to OPC. While some studies have shown slightly lower early compressive strength, this can be mitigated through adjustments in curing regimes or calcined clay content.

A study conducted by the Indian Institute of Technology (IIT) Delhi revealed that LC3 formulations with 30% calcined clay and 15% limestone reached compressive strengths of 40 MPa at 28 days—on par with OPC, but with a significant reduction in carbon emissions.

Enhanced Chloride Resistance

LC3 outperforms OPC significantly in terms of chloride resistance, making it ideal for structures in marine environments or areas exposed to de-icing salts. Studies from Swiss Federal Laboratories (Empa) demonstrated that LC3 exhibited up to 60% better resistance to chloride ion penetration than OPC, a critical factor for improving durability and extending the lifespan of concrete structures.

Figure 3: Durability Testing of LC3 Cement in Laboratory

Sulfate Resistance and Carbonation

Durability studies conducted by ETH Zurich and École Polytechnique Fédérale de Lausanne (EPFL) have shown that LC3 has excellent resistance to sulfate attack and carbonation. However, research is ongoing to assess its performance in regions with severe freeze-thaw cycles, where high-clay formulations may face limitations.

Heat of Hydration and Use in Mass Concrete

Due to its lower clinker content, LC3 generates less heat during hydration than OPC. This reduction in heat, by as much as 20-30%, makes LC3 suitable for mass concrete applications like dams and foundations, particularly in hot climates where thermal cracking is a major concern.

Energy Efficiency and Cost Reduction in LC3 Production

Calcination Temperature and Energy Savings

The calcination of kaolinitic clay occurs at temperatures between 700-850°C, far lower than the 1450°C required for clinker production. This lower temperature significantly reduces energy consumption by up to 25%, representing a key advantage for countries with high energy costs. The lower energy demand also makes LC3 an attractive option for regions with limited fuel resources.

Cost Competitiveness

A study conducted in India showed that LC3 could be 15-20% cheaper to produce than OPC, thanks to reduced energy consumption and the availability of raw materials such as limestone and kaolinitic clay. Although the initial investment for calcination equipment may be higher, these costs can be offset by long-term savings on energy and raw materials.

Figure 4: Process to Produce LC3 Cement

Global Success Stories

Several countries have successfully implemented LC3 technology, proving its viability as a low-carbon alternative to OPC. These examples demonstrate the global success of LC3 cement, highlighting its potential for widespread adoption.

Cuba: Pioneering the Use of LC3

Cuba has been at the forefront of LC3 development and implementation. The country has integrated LC3 into its national cement standards and has been using it in infrastructure projects, including housing and road construction. In partnership with the École Polytechnique Fédérale de Lausanne (EPFL), Cuban researchers developed the first commercial LC3 plant in Las Villas, which now produces LC3 for both domestic use and export. The country’s efforts in LC3 production have reduced its cement-related CO2 emissions by 25% and have set an example for other countries looking to reduce their carbon footprint in cement production.

India: Scaling Up LC3 for Infrastructure Growth

India, one of the world’s largest cement producers, has made significant strides in LC3 adoption. The Indian government, in collaboration with research institutions such as IIT Delhi and the National Council for Cement and Building Materials (NCCBM), has been actively promoting LC3 through pilot projects and policy support.

In one successful example, LC3 was used in the construction of affordable housing projects under the Pradhan Mantri Awas Yojana (PMAY) scheme. The use of LC3 in these projects resulted in both cost savings and a 30% reduction in carbon emissions compared to traditional OPC-based construction.

Furthermore, India’s commitment to sustainable infrastructure, as outlined in the 2024 Union Budget, is expected to drive further growth in LC3 adoption. With increasing demand for low-cost, eco-friendly construction materials, LC3 is poised to play a critical role in India’s infrastructure development.

Figure 5.: LC3 Usage in Construction of Affordable Housings

Switzerland: LC3’s Role in Green Building Certifications

In Switzerland, LC3 has been embraced by the green building movement, where low-carbon materials are critical for achieving certification under schemes such as LEED and BREEAM. The use of LC3 in commercial projects, such as the Zurich Airport expansion, has helped reduce the carbon footprint of construction while maintaining the high-performance standards required for such projects. LC3’s durability, particularly its chloride and sulfate resistance, has made it an attractive option for building long-lasting infrastructure.

Africa: Addressing Housing Shortages with LC3

In Africa, LC3 is helping to address critical housing shortages by providing a low-cost, low-carbon alternative to OPC. Ethiopia, Kenya, and Ghana have all explored the use of LC3 in affordable housing initiatives, with positive results. In Ethiopia, for example, a project supported by the United Nations Environment Programme (UNEP) used LC3 for the construction of eco-friendly housing units. The project not only reduced the carbon footprint of the construction process but also lowered material costs by nearly 15%, making housing more accessible to low-income families.

Challenges in LC3 Adoption Technical and Market Barriers

Raw Material Variability

The performance of LC3 depends heavily on the quality of the raw materials, particularly kaolinitic clay. Variability in kaolin content can lead to inconsistent performance, affecting strength and durability. Research at the University of Cambridge is focused on developing methods to predict and standardize clay reactivity, but more work is needed to ensure LC3 can be produced reliably across different regions.

Industry Conservatism and Regulatory Barriers

The cement industry is traditionally conservative, and many producers are hesitant to adopt new technologies like LC3. Concerns about performance variability, lack of familiarity with calcination technology, and resistance to changing established production processes have slowed LC3 adoption in many regions.

Regulatory frameworks also need to be updated to include LC3 as a standard cement type, which requires coordination between governments, industry associa- tions, and standards bodies.

Capital Investment in Calcination Technology

The initial investment required for calcination equipment can be a barrier, particularly in developing countries. While the long-term savings on energy and raw materials can offset these costs, financial support and incentives from governments or international organizations may be necessary to encourage LC3 production at scale.

The Future of LC3: Research Directions and Policy Implications

Advanced Calcination Technologies

Research into advanced calcination technologies, such as fluidized bed reactors and solar-powered kilns, could further reduce the energy consumption of LC3 production. Pilot projects in Spain and Germany have shown that solar calcination of clay is technically feasible, although significant challenges remain in scaling up this technology.

Policy Support for LC3 Adoption

Governments play a crucial role in promoting LC3 adoption through policy measures such as carbon pricing, tax incentives for low-carbon materials, and public procurement requirements for green construction materials.

India, Cuba, and several European countries have already taken steps in this direction, but more widespread policy support is needed to drive global LC3 adoption.

Enhancing LC3 Production and Usage in India

Despite its proven benefits and the Bureau of Indian Standards (BIS) released the specifications for Limestone Calcined Clay Cement (LC3), the production and widespread usage of LC3 in India remain limited.

While some forward-thinking companies have ventured into LC3 production, their output volumes are low, preventing the cement from gaining the momentum it needs to become a mainstream alternative to Ordinary Portland Cement (OPC).

Given the enormous potential of LC3 to reduce the environmental impact of the cement industry—by decreasing CO2 emissions by up to 40%—there is an urgent need to accelerate its production and adoption across the country. This section explores the key challenges hindering LC3’s growth in India and outlines actionable strategies that stakeholders, including cement manufacturers, policymakers, researchers, and builders, can adopt to improve its usage and production.

Addressing Industry Conservatism and Resistance to Change

Challenge: The Indian cement industry has traditionally been conservative, with a strong preference for tried-and-tested OPC formulations. This industry-wide resistance to adopting new technologies such as LC3 is one of the main barriers to increasing its production.

Solution: Building Awareness through Demonstration Projects: One of the most effective ways to counter industry conservatism is to demonstrate the tangible benefits of LC3 through large-scale pilot projects. The government, in collaboration with private sector players, should initiate flagship infrastructure projects that utilize LC3, such as highways, dams, or housing developments under schemes like the Pradhan Mantri Awas Yojana (PMAY). Demonstrating the cost savings, reduced carbon footprint, and long-term durability of LC3 in such projects will provide confidence to other cement manufacturers to invest in this new technology.

Industry-Wide Knowledge Sharing and Workshops: Organizing seminars, workshops, and conferences that bring together experts, researchers, and cement manufacturers to discuss the technical performance and commercial viability of LC3 will help increase awareness. The involvement of industry bodies like the Cement Manufacturers' Association (CMA) and collaboration with research institutions like the National Council for Cement and Building Materials (NCCBM) is essential to spread the knowledge of LC3’s advantages.

Addressing Perceived Risks: Providing data and case studies that show LC3’s comparable performance to OPC in terms of strength and durability can reduce apprehension in the market. Government-backed studies on the long-term behavior of LC3 in Indian climatic conditions can help further establish confidence in the cement.

Improving the Supply Chain for Raw Materials

Challenge: The availability of high-quality kaolinitic clay is essential for producing LC3. While India has abundant clay resources, the supply chain for calcined clay is underdeveloped, which creates bottlenecks in scaling up production.

Solution: Mapping and Developing Regional Calcined Clay Hubs: The Indian government, in coordination with geological surveys and mining authorities, should conduct detailed mapping of kaolinitic clay deposits across the country. Establishing regional calcined clay production hubs in proximity to cement plants can reduce transportation costs and improve the availability of raw materials. This will also encourage smaller cement plants to start LC3 production without facing raw material shortages.

-Investment in Calcination Infrastructure: Incentivizing investment in calcination plants is crucial for improving the supply of calcined clay. Public-private partnerships (PPPs) or subsidies can be offered to encourage the establishment of calcination units. Additionally, integrating calcined clay production into existing cement plants can help optimize the supply chain.

Financial Incentives and Policy Support

Challenge: While the cost of producing LC3 is competitive in the long run, the initial capital investment required for calcination technology and new production lines can deter smaller cement manufacturers from transitioning to LC3.

Solution: Incentives and Subsidies: The Indian government should provide targeted subsidies for companies investing in LC3 production technology. Financial incentives could take the form of capital subsidies for new calcination plants or tax breaks for companies that reduce their clinker content by adopting LC3. This could be tied to broader climate-related policies, such as India’s National Action Plan on Climate Change (NAPCC), to promote sustainability in the cement sector.

-Carbon Credits and Emissions Trading: Cement companies that produce LC3 should be eligible for carbon credits under India’s emissions trading schemes. This will create an additional revenue stream for LC3 manufacturers, making the technology even more attractive. The government could also explore tying LC3 production to India’s commitments under the Paris Agreement to provide more international financial support for scaling up LC3 production.

Revising Public Procurement Policies: Government construction projects account for a significant portion of cement demand in India. By revising public procurement policies to prioritize LC3 for government-funded infrastructure projects, the government can create a steady demand for this low-carbon alternative. Infrastructure projects under the Smart Cities Mission, the Bharatmala Project, and large public housing initiatives could specifically mandate the use of LC3 in tenders.

Raising Awareness Among Builders and Contractors

Challenge: There is a general lack of awareness among builders, contractors, and end-users regarding the benefits of LC3, which results in low demand for this type of cement. Many builders still prioritize cost and familiarity over environmental impact and long-term durability.

Solution: Educational Campaigns and Training: Comprehensive awareness campaigns, similar to those conducted for energy-efficient appliances or water conservation, can be organized to highlight LC3’s benefits in construction. Training programs for civil engineers, architects, and contractors should focus on how to work with LC3, its curing requirements, and performance characteristics. This can be conducted through institutions like the Indian Green Building Council (IGBC) and the Construction Industry Development Council (CIDC).

Certification and Labeling Programs: Launching a “Green Cement” certification for LC3 that is recognized by builders and buyers can help promote its usage. This certification could be endorsed by environmental organizations and building authorities, and could be tied to green building certifications like LEED or GRIHA, providing additional value to real estate developers using LC3.

Encouraging Research and Development

Challenge: Although LC3 is a well-researched technology, there are still gaps in terms of optimizing its performance under different climatic and application conditions, especially in India.

Solution: Increased Funding for LC3 Research: The government and private sector should increase funding for R&D on LC3, particularly focusing on improving its performance in different Indian climatic zones. Research institutions like IITs and NCCBM can play a leading role in developing solutions for local conditions, such as enhancing LC3’s performance in high-humidity or freeze-thaw regions.

Collaborative Innovation Hubs: Establishing collaborative innovation hubs where cement companies, universities, and start-ups can work together to improve LC3 formulations could spur further innovation. These hubs could focus on developing region-specific LC3 solutions, improving calcination efficiency, and conducting life-cycle assessments (LCA) to quantify the long-term environmental and economic benefits of LC3 over OPC. Leveraging India’s International Climate Commitments India has committed to reducing its emissions intensity by 33-35% by 2030 under the Paris Agreement, and the cement industry is a crucial part of this strategy. By promoting LC3 production and usage, India can accelerate its progress towards these climate goals while simultaneously boosting its global reputation as a leader in sustainable construction.

The Indian government can also leverage international funding mechanisms, such as the Green Climate Fund (GCF), to finance LC3 projects, particularly in regions where there is an urgent need for affordable and sustainable construction materials. Collaborative efforts with international agencies like the United Nations Environment Programme (UNEP) or the World Bank could further support the scaling up of LC3 technology across the country.

Conclusion

While LC3 cement holds immense potential to revolutionize the Indian cement industry by reducing CO2 emissions and promoting sustainable construction, its adoption has been slow due to several technical, financial, and awareness-related barriers. However, by addressing these challenges through targeted policy support, investment in infrastructure, and industry-wide collaboration, India can significantly increase the production and use of LC3.

Government initiatives, financial incentives, and partnerships between stakeholders in the cement industry will be critical in driving this transformation. A concerted effort involving policymakers, cement manufacturers, builders, researchers, and environmental advocates is essential to ensuring that LC3 becomes a mainstream alternative to OPC, not only in India but also globally. By doing so, India will not only meet its climate commitments but also create a more sustainable and resilient construction ecosystem for the future.

References:

1. Scrivener, K., Martirena, F., Bishnoi, S., & Maity, S. (2018): Calcined clay limestone cements (LC3). Cement and Concrete Research, 114, 49-56.
2. Bishnoi, S., & Maity, S. (2016): LC3: Cement based on limestone and calcined clay. Indian Concrete Journal, 90(7), 22-29.
3. Martirena, F., & Scrivener, K. L. (2014): Low-CO2 cement: Limestone calcined clay cement as an alternative to Portland cement. Green Materials, 2(3), 173-191.
4. Antoni, M., Rossen, J., Martirena, F., & Scrivener, K. (2012): Cement substitution by a combination of metakaolin and limestone. Cement and Concrete Research, 42(12), 1579-1589.
5. Nguyen, L. H., Maier, M., De Weerdt, K., & Justnes, H: (2020): Durability properties of LC3-based mortars and concretes. Materials, 13(22), 5086.
6. Singh, N. B., & Middendorf, B. (2020): Calcium sulfoaluminate cements: Key aspects of their hydration and durability. Cement and Concrete Research, 138, 106267.
7. Scrivener, K. L. (2014): Options for the future of cement. Indian Concrete Journal, 88(7), 11-21.
8. Mehta, P. K. (1999): Concrete technology for sustainable development: An overview of essential parameters for durable concrete. ACI Special Publication, 193, 1-20.
9. Dhandapani, Y., Santhanam, M., & Khithani, D. (2017): Performance evaluation of LC3 mortar using different grades of calcined clay in binary and ternary blends. Construction and Building Materials, 153, 588-600.
10. Bureau of Indian Standards (2015). IS 16415: 2015—Cement for use with calcined clay as supplementary cementitious material—Specification. New Delhi, India: BIS.
11. Garg, M., & Malviya, V. (2019): Development and commercialization of LC3 cement in India. Indian Cement Review, 33(10), 16-20.
12. Nath, P., & Sarker, P. K. (2015): Use of LC3 cement in low-carbon construction in India. Procedia Engineering, 125, 206-212.

About the author

Dr S B Hegde is Ex President – Manufacturing (Cement Industry), Professor, Civil Engineering, Jain College of Engineering and Technology, Hubli, India and Visiting Professor, Penn State University, USA
