Liebherr introduced new mobile cranes, tower cranes, wheel loaders, and crawler tractors at Excon 2019

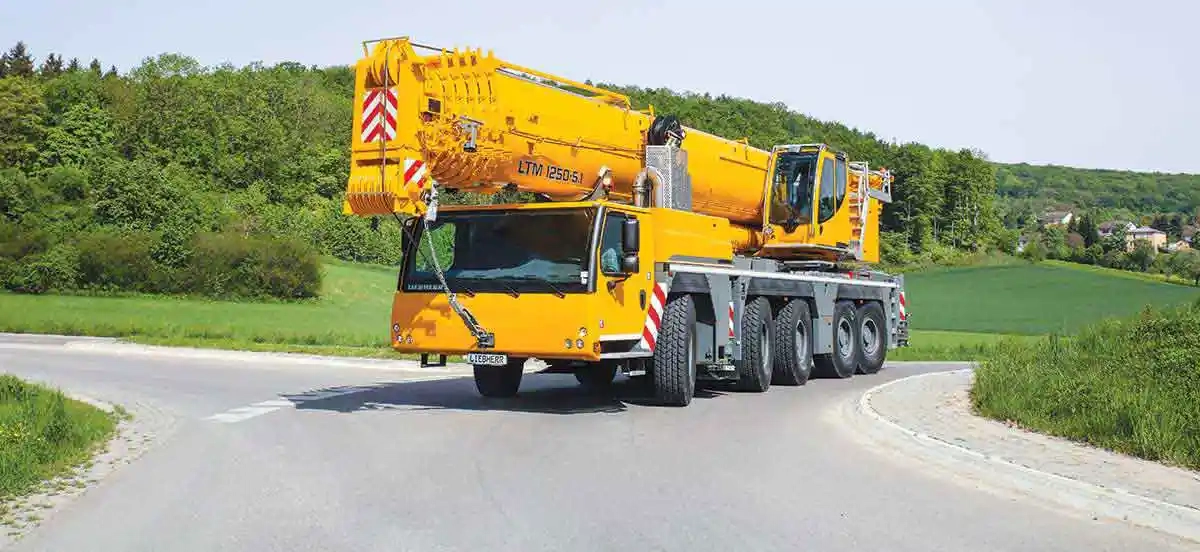

Liebherr’s LTM 1250-5.1 is one of the most powerful 5-axle mobile cranes on the market.
The LTM 1250-5.1 is the successor to the globally successful model LTM 1220-5.2. In the development of the crane, Liebherr followed the concept of achieving maximum load capacity from the available weight of a 5-axle mobile crane. The result is that the LTM 1250-5.1 is one of the most powerful cranes in its class in the world. Its load capacity has been increased compared to its predecessor by around 15 to 20 percent, whilst the telescopic boom has remained at the same length of 60m. With lattice extensions, the maximum hook height has been increased by a massive 9m to 110m.
Liebherr has a particularly wide and variable range of lattice jibs for the LTM 1250-5.1.
The 12.2m to 22m folding jib can be extended up to 36m with 7-metre sections. The folding jib is attached with a 0°, 22.5° or 45° inclination. As an option the folding jib can be supplied with a hydraulic adjustment system, which allows it to luff with a full load between 0° and 45°. The adapter section for the folding jib is used as a 5.4m erection jib. The pivot point for the folding jib can be raised using up to two straight 7m lattice sections acting as telescopic boom extensions. These sections and the folding jib extensions can also be used on the Liebherr LTM 1200-5.1 and LTM 1220-5.2 mobile cranes. This is a major benefit for crane operators that use these crane models in their fleet.
One feature that has been unusual in the 5-axle class to date is the possibility to mount a long fixed jib, which can achieve enormous radii over buildings.
Liebherr has created a particularly smart solution for this; it is now possible to achieve a fixed jib of up to 50 m in length with just one additional TF adapter (connection between the telescopic boom and the fixed jib), a reducer section and a head. The existing telescopic boom extensions and folding jib extensions are used for this purpose. This jib is generally hydraulically adjustable between 0° and 45° and can therefore be used like a luffing jib.
The maximum ballast on the new LTM 1250-5.1 is 88t with a maximum width of 6.3m. The base plate weighing 1t and a 10-t ballast plate are the same width as the vehicle. With up to 68 tons of ballast the ballast width is 4.1m.
The LTM 1250-5.1 can be operated with two different ballast radii: 5.58m or 4.78m.
VarioBallast is a new feature for Liebherr. The LTM 1250-5.1 can be operated with two different ballast radii: 5.58m or 4.78m. Liebherr has designed a solution to adjust the ballast radius particularly quickly and easily. The ballast radius is reduced by 800mm using standard mechanically swiveling ballasting cylinders. This solution is a major benefit of the new 250-tonne model for use in constricted conditions.
Liebherr manufactures three wheel loader models for the Indian market: the L 550, L 566, and the L 580, all of which are robust machines with high performance and low operating costs.
Liebherr will be exhibiting two of its wheel loaders (L 550 and L 566) from its current wheel loader product range for India and for less regulated countries. Due to their hydrostatic driveline, these wheel loaders – like all Liebherr wheel loaders – are fuel efficient, consuming up to 25 percent less fuel compared with conventional wheel loaders under the same conditions. The optimum weight distribution of the machines increases productivity at work, because larger buckets can be used to handle more material with each loading cycle.
The Liebherr wheel loader L 550 on display is powered by a 140 kW / 190 HP diesel engine. Equipped with a 4,5 m³ light material bucket the wheel loader achieves a tipping load of 11,100 kg at an operating weight of 17,700 kg. The optimum weight distribution combined with a wide range of attachments for different applications supports businesses to benefit from increased productivity during daily operation, thus using larger buckets compared to other type of wheel loaders in the same class. Moreover, Liebherr presents the L 566 wheel loader with Z-kinematics and a 6,5 m³ light material bucket. With an operating weight of 23,500 kg the exhibit has a tipping load of 14,500 kg. The L 566 is powered by an economical 200 kW / 272 HP Liebherr diesel engine. Both wheel loaders satisfy exhaust emissions standard below the limits of the Indian certification Bharat Stage III.
The LTM 1250-5.1 is the successor to the globally successful model LTM 1220-5.2. In the development of the crane, Liebherr followed the concept of achieving maximum load capacity from the available weight of a 5-axle mobile crane. The result is that the LTM 1250-5.1 is one of the most powerful cranes in its class in the world. Its load capacity has been increased compared to its predecessor by around 15 to 20 percent, whilst the telescopic boom has remained at the same length of 60m. With lattice extensions, the maximum hook height has been increased by a massive 9m to 110m.
Liebherr has a particularly wide and variable range of lattice jibs for the LTM 1250-5.1.
The 12.2m to 22m folding jib can be extended up to 36m with 7-metre sections. The folding jib is attached with a 0°, 22.5° or 45° inclination. As an option the folding jib can be supplied with a hydraulic adjustment system, which allows it to luff with a full load between 0° and 45°. The adapter section for the folding jib is used as a 5.4m erection jib. The pivot point for the folding jib can be raised using up to two straight 7m lattice sections acting as telescopic boom extensions. These sections and the folding jib extensions can also be used on the Liebherr LTM 1200-5.1 and LTM 1220-5.2 mobile cranes. This is a major benefit for crane operators that use these crane models in their fleet.
In the development of the crane Liebherr followed the concept of achieving maximum load capacity from the available weight of a 5-axle mobile crane
One feature that has been unusual in the 5-axle class to date is the possibility to mount a long fixed jib, which can achieve enormous radii over buildings.
Liebherr has created a particularly smart solution for this; it is now possible to achieve a fixed jib of up to 50 m in length with just one additional TF adapter (connection between the telescopic boom and the fixed jib), a reducer section and a head. The existing telescopic boom extensions and folding jib extensions are used for this purpose. This jib is generally hydraulically adjustable between 0° and 45° and can therefore be used like a luffing jib.
The maximum ballast on the new LTM 1250-5.1 is 88t with a maximum width of 6.3m. The base plate weighing 1t and a 10-t ballast plate are the same width as the vehicle. With up to 68 tons of ballast the ballast width is 4.1m.

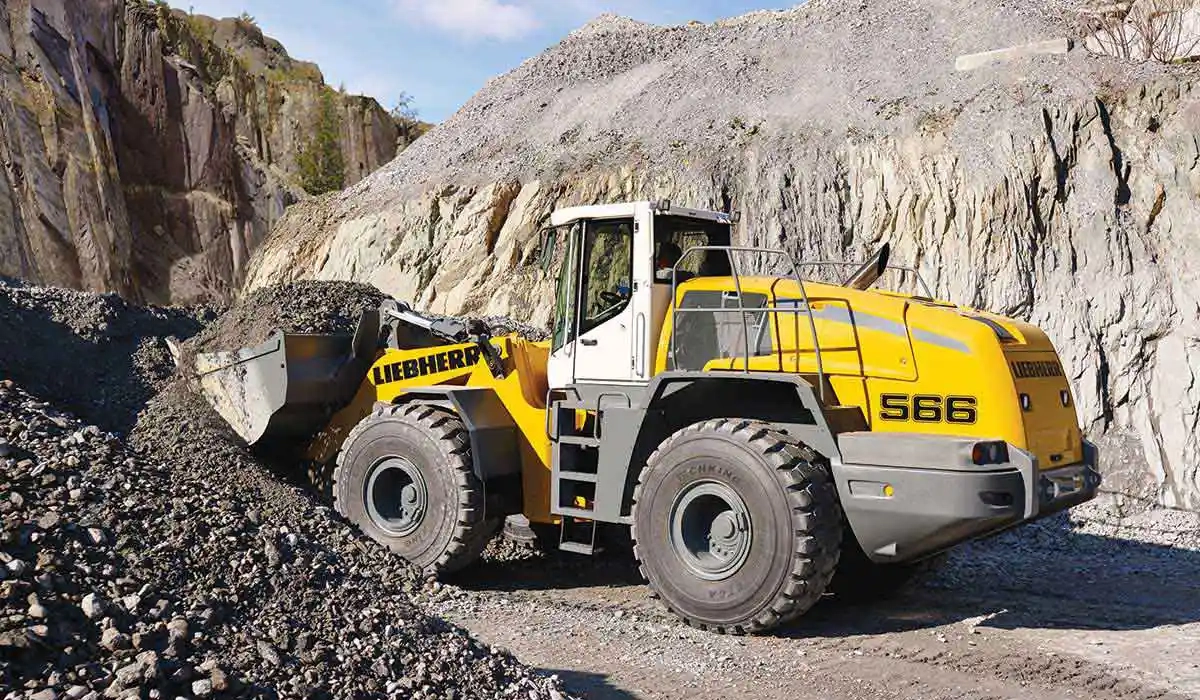

The L 566 penetrates powerfully into the material with its Z-kinematics
The LTM 1250-5.1 can be operated with two different ballast radii: 5.58m or 4.78m.
VarioBallast is a new feature for Liebherr. The LTM 1250-5.1 can be operated with two different ballast radii: 5.58m or 4.78m. Liebherr has designed a solution to adjust the ballast radius particularly quickly and easily. The ballast radius is reduced by 800mm using standard mechanically swiveling ballasting cylinders. This solution is a major benefit of the new 250-tonne model for use in constricted conditions.
Liebherr manufactures three wheel loader models for the Indian market: the L 550, L 566, and the L 580, all of which are robust machines with high performance and low operating costs.
Liebherr will be exhibiting two of its wheel loaders (L 550 and L 566) from its current wheel loader product range for India and for less regulated countries. Due to their hydrostatic driveline, these wheel loaders – like all Liebherr wheel loaders – are fuel efficient, consuming up to 25 percent less fuel compared with conventional wheel loaders under the same conditions. The optimum weight distribution of the machines increases productivity at work, because larger buckets can be used to handle more material with each loading cycle.
The Liebherr wheel loader L 550 on display is powered by a 140 kW / 190 HP diesel engine. Equipped with a 4,5 m³ light material bucket the wheel loader achieves a tipping load of 11,100 kg at an operating weight of 17,700 kg. The optimum weight distribution combined with a wide range of attachments for different applications supports businesses to benefit from increased productivity during daily operation, thus using larger buckets compared to other type of wheel loaders in the same class. Moreover, Liebherr presents the L 566 wheel loader with Z-kinematics and a 6,5 m³ light material bucket. With an operating weight of 23,500 kg the exhibit has a tipping load of 14,500 kg. The L 566 is powered by an economical 200 kW / 272 HP Liebherr diesel engine. Both wheel loaders satisfy exhaust emissions standard below the limits of the Indian certification Bharat Stage III.
