Stationary Concrete Pump BSA 702D Working on Site
 |

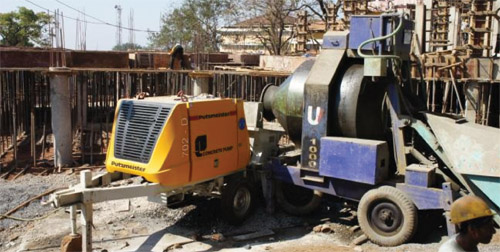

| BSA 702D working at the Construction site of Govt. Medical College, Goa |
PM Stationary Concrete Pump BSA 702D has been deployed at the construction site in Goa for the expansion of Medical College at Bambolim. The Contractor for the Project was Ruby Realtors Pvt Ltd. who carried out this Project for their Client M/s GSIDC (Goa State Infrastructure Development Corporation Ltd).
M/s Ruby Realtors have purchased the BSA 702D especially for usage with the Concrete Mix being prepared at the Job site by a reversible drum Mixer. The reversible drum mixer being used is of three bin type.
BSA 702D is specially designed for pumping speed which is best suited for these type of reversible drum mixers having capacity ranging from 10 / 20 cum/hr. The Grade of Concrete used at site is M-30 & slump is between 120-150 mm. For 50 meter horizontal piping and 5 m vertical pumping, the pushing pressure was 50 to 70 bar.
The Mix design per batch for one cu m of M-30 grade concrete consists of 638 Kgs of 20 mm aggregates, 479 kg of 10 mm aggregates, 420 Kgs of Cement, 739 Kgs of Sand, 165 litres of water & 1.5 litres of Admix (of Forsroc Conplast P-211 make).
Client's Viewpoint:
"We have been using Putzmeister Machines for our various Projects, but this BSA 702D we have especially purchased for the Job Site Mix Concrete with Reversible Drum Mixer and faced no problem till date and we are very happy with its performance."
Oswald Cardozo
Director, Ruby Realtors
M/s Ruby Realtors have purchased the BSA 702D especially for usage with the Concrete Mix being prepared at the Job site by a reversible drum Mixer. The reversible drum mixer being used is of three bin type.
 |
 |
| View of the Construction Site | Concrete pouring from Drum Mixer to concrete pump hopper |
BSA 702D is specially designed for pumping speed which is best suited for these type of reversible drum mixers having capacity ranging from 10 / 20 cum/hr. The Grade of Concrete used at site is M-30 & slump is between 120-150 mm. For 50 meter horizontal piping and 5 m vertical pumping, the pushing pressure was 50 to 70 bar.
The Mix design per batch for one cu m of M-30 grade concrete consists of 638 Kgs of 20 mm aggregates, 479 kg of 10 mm aggregates, 420 Kgs of Cement, 739 Kgs of Sand, 165 litres of water & 1.5 litres of Admix (of Forsroc Conplast P-211 make).
 |
 |
| Horizontal pipe layout of around 50 meters | Vertical Pipe layout of around 5 meters |
Client's Viewpoint:
"We have been using Putzmeister Machines for our various Projects, but this BSA 702D we have especially purchased for the Job Site Mix Concrete with Reversible Drum Mixer and faced no problem till date and we are very happy with its performance."
Oswald Cardozo
Director, Ruby Realtors
NBM&CW June 2011
