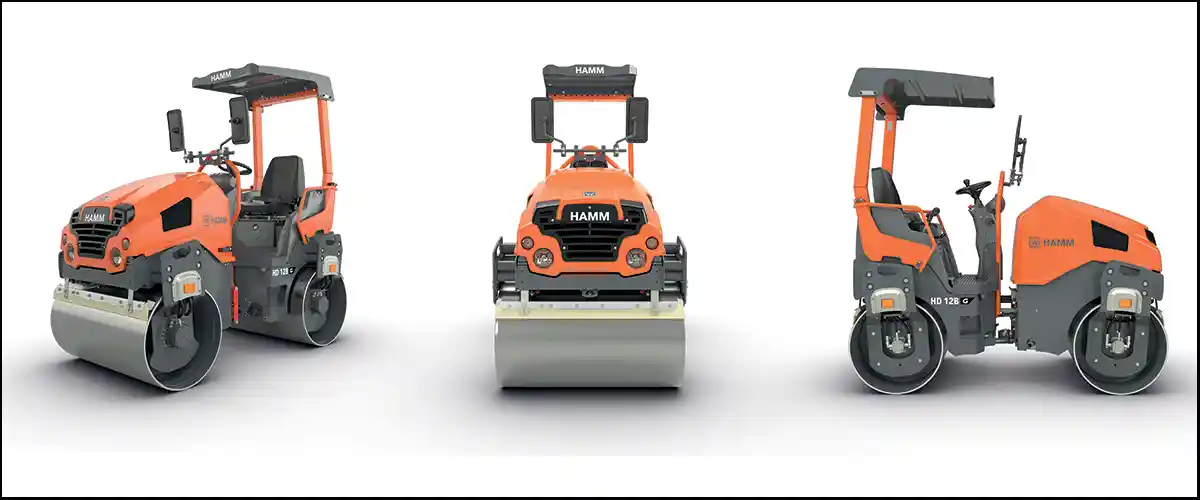

Hamm introduces new CEV Stage V Compact Tandem Roller HD 12B G-Tier

With the product launch of the HD 12B G-Tier tandem roller, Hamm is making the globally proven HD CompactLine series available to customers in India for the first time. HD CompactLine tandem rollers have been used worldwide for more than two decades and combine compact dimensions and agility with high compaction performance.

A key feature of the HD 12B G-Tier is the characteristic “wasp waist” design, which provides clear visibility to the drums and the area in front of the roller. In combination with the proven 3-point articulation, the machine offers stable driving characteristics, a tight turning radius, and uniform weight distribution which is one of the key features for high compaction quality.

Operation is simplified thanks to a text‑free, icon‑based interface. All key information is displayed using clear pictograms, allowing intuitive use regardless of language skills and experience. Daily tasks are also designed for efficiency: a central lifting point supports quick loading, while service areas are grouped on one side of the machine and accessible via a wide‑opening engine hood.

The compaction performance is achieved through a high static linear load and centrifugal forces of up to 43 KN. This in combination with a diameter of 720 mm prevents cracks and bulges while enabling consistent compaction quality. Power is supplied by an 18,4 kW Yanmar engine that meets the CEV Stage V emissions standard. The operating weight is 2,9 t. With these parameters, the new HD 12B G-Tier is an all-rounder for asphalt construction, soil compaction and landscaping.

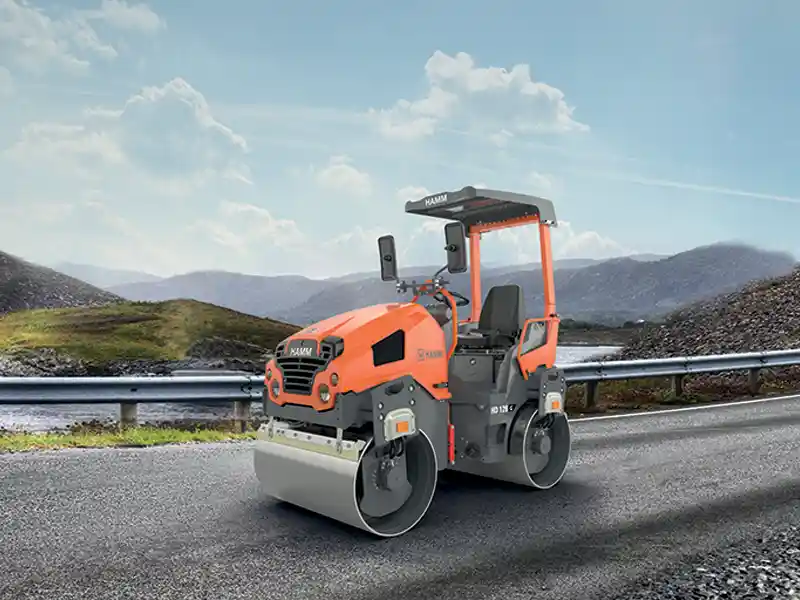

The new tandem roller HD 12B G-Tier is powerd by an 18,4 kW engine. With an operating weight of 2,9 t and a drum width of 1,200 mm, it is ideally suited for a wide range of applications in road construction, soil compaction and landscaping.
