Suretech Infrastructure: Pile Driving Equipment & Sheet Pile Solutions

What is sheet piling? Sheet piles are sections of sheets of Steel or PVC with interlocking edges that are driven into the ground to provide earth retention and excavation support. Vibratory Hammers are usually used to install sheet piles, and Impact Hammers can be used if soils are too hard or dense.

On building projects, sheet piling is often done to provide temporary retention for construction of basement. On civil projects, sheet piling is commonly used for riverbank protection, seawalls, cofferdams, etc.

Unlike other retention/shoring techniques, sheet piles can be reused, which brings additional value to projects. PVC sheet piles are a cost-effective alternative to steel sheets if their requirement is in permanent works.

sheets of Steel or PVC with interlocking edges

Why PVC sheet piles? These are the most durable synthetic pile products in the world. PVC is the material of choice when environmental factors require that sheet pile wall structures will not rot, decay, rust, or spall. PVC sheet piles are specifically designed to replace conventional sheet piles.

Advantages of PVC sheet piling: Durable & Attractive

In corrosive environments, PVC protects assets as wood rots, concrete spalls, and steel rusts. Based on independent testing and analysis, PVC walls can last 75+ years when properly designed and installed. You do not need any other equipment for installation of these sheet piles. PVC sheet piles can be driven with vibratory hammers.

sheets of Steel or PVC with interlocking edges

By using an attractive graphite gray colour, sheet piling blends perfectly with marine applications, while customised or matching colours can greatly enhance the look of your project.

Applications of sheet piles:
  • Retaining Walls
  • Foundation Support
  • Wharf and Quay Walls
  • Bridge Abutments
  • Trench Shoring
  • Cofferdams
  • Underground Parking
  • Riverbank Stabilisation
  • Pipeline Installation
Popular equipment used for driving sheet piles:

I. Vibratory Hammers: Vibratory hammers are highly effective for sheet pile driving in soft and granular soils. Their unique feature lies in harnessing vibrational energy through eccentric weights or hydraulic motors, creating high-frequency vibrations that reduce friction during penetration. Resonance Free Vibratory hammers can be used in urban areas because of their ability to minimize soil disturbance and noise. This characteristic of RF hammers make them invaluable in urban settings or projects adhering to strict environmental regulations. The rapid installation in specific soil types further enhances their appeal for efficient and eco-friendly sheet pile driving, especially where minimizing environmental impact is important.

Vibratory Hammers can be Crane suspended or Excavator mounted.

sheets of Steel or PVC with interlocking edges
Crane Suspended Vibro hammers:
These are more powerful as they get their power from a dedicated powerpack and allow you to drive sheet piles to a depth of even upto 35-40m. This set up is more expensive as you will need a crane with a double winch, a vibro with a powerpack, and a team of crew members for operation of the set up. If you need to drive sheet piles deeper and in hard soils, this is the best set up.

Excavator Mounted: These Hammers have evolved tremendously over the years. There is also now one available with a tilting mechanism to hold, lift and drive sheet piles in a single operation. If you need to drive upto 8m, you can opt for a unit suitable for a 20T excavator, while a 30T and a 40T excavator with gooseneck extensions or Vibro boom attachment can allow you to drive sheet piles upto a depth of 14-16m. Excavator mounted set ups incur lesser investment and operating costs and are more popular all over the globe due to their ease and speed of operation.

sheets of Steel or PVC with interlocking edges

II. Side Grip Hammers: The excavator mounted side grip vibro hammers are preferred where there are space constraints. For e.g. if you need to drive sheet piles under a bridge or a flyover, you cannot use a crane or a large excavator. Here, a side grip mounted hammer on a 20T or a 30T excavator can be used to drive even upto 14m sheet piles.

The excavator mounted side grip vibro hammers
III. Impact Hammers: Impact hammers are characterized by a striking mechanism where the ram weight of the hammer drops on the sheet piles with gravity. It is pulled up with hydraulic force and dropped repeatedly with concentrated impact energy, driving the sheets into the ground. Their key feature lies in high driving efficiency, making them suitable for harder soil conditions. The robust construction and adaptability of impact hammers make them highly reliable in diverse construction scenarios. Whether facing challenging ground conditions or requiring versatility in soil types, impact hammers are an effective and dependable solution for sheet pile driving. Impact hammers are also useful if you need to drive deeper sheet piles.

Impact hammers can be Hydraulic, Pneumatic or Diesel. However, diesel hammers are no longer preferred due to their high pollution and pneumatic hammers are not as powerful or efficient as their hydraulic counterparts.

Hydraulic Pile Pressing machines
IV.Hydraulic Pile Pressing machines: Also known as silent piler or still worker, these machines use reactionary force to press the sheet piles silently without any noise or vibration. The most expensive set-up of all, these equipment are used wherever environmental disturbances are prohibited, like in eco-sensitive marine areas, dense urban locations, etc.

Suretech Infrastructure, specialist in pile driving equipment for over 30 years, is installing all types of temporary and permanent sheet piles and casings. The company has a wealth of experience in helping clients select the equipment most suitable for their project, and provides value engineered solutions no matter the scale or complexity of the project. Suretech’s product quality and product support are second to none in India.
NBM&CW - March 2024
Eimco Elecon's Made in India Fuel Efficient Rotary Piling Rig

Eimco Elecon's Made in India Fuel Efficient Rotary Piling Rig

Eimco Elecon, has been offering a wide range of products such as side discharged loaders, load haul dumpers, chairlift man riding system, continuous miner, roof bolter, shuttle car etc, for use in Underground Mining. “EC216 is an indigenized machine

Read more ...

Casagrande's Piling Rig, Diaphragm Wall, Hydromill & Tunneling Machine

Casagrande's Piling Rig, Diaphragm Wall, Hydromill & Tunneling Machine

Casagrande is marking 60 years in the field of deep foundation, and geotechnical investigation. “We are mainly meeting the requirements of projects that require the latest technology for high productivity and speedy completion of jobs. Our focus

Read more ...

Kennametal's Foundation Drilling Tools And Powerful Cutting Systems

Kennametal's Foundation Drilling Tools And Powerful Cutting Systems

The key to a successful foundation drilling operation lies in the selection of the right equipment, tooling and the cutting system depending on the geological conditions. Rohit Reddy, Deputy General Manager, Earth Cutting Business, Kennametal

Read more ...

Epiroc's Drill Rig, Pulverizer, Cutter, Rock Drills & Intelligence

Epiroc's Drill Rig, Pulverizer, Cutter, Rock Drills & Intelligence

Epiroc is helping customers maximize use of the latest technologies, and developing new ways of raising efficiency and improving sustainability. Its aim is to ensure that customers benefit fully from the ongoing digital evolution. It offers

Read more ...

Why Infra Projects Suffer Time & Cost Overruns

Why Infra Projects Suffer Time & Cost Overruns

In 1991, the Ground Board of the Institution of Civil Engineers, London, published a report on inadequate site investigation leading to construction delays and additional costs. The findings were based on a study of 5000 Industrial buildings, 8000 commercial projects

Read more ...

Deep Foundation Construction

Deep Foundation Construction

Proper site characterisation can eliminate significant risks involved in the design and construction of pile foundation both in liquefiable and non-liquefiable soils, emphasizes Dr Parthasarathy, CMD, Sarathy Geotech & Engineering Services

Read more ...

Helical Screw Piles and Opportunities in India

Helical Screw Piles and Opportunities in India

Mohan Ramanathan, Managing Director, Advanced Construction Technologies, Chennai, gives insights into the current scenario of deep foundations in India and the need for improved adoption of Helical Screw Piles Methodology for efficient foundation construction

Read more ...

For Speedier & Quality Construction

For Speedier & Quality Construction

G. Venkat Prasad, Director Operations, DFII, emphasizes the need for implementing global best practices and technologies in geotechnical and foundation construction for effective project implementation. India is in a fast-forward mode: the country is implementing

Read more ...

Blast Hole Rig From PRD For Aggregates And Granite Quarrying

Blast Hole Rig From PRD For Aggregates And Granite Quarrying

PRD is the first drilling rig manufacturer in India with ISO 9001:2015 certification; it has a wide range of superior quality products that include core drilling, reverse circulation drilling, pole drilling, blast hole drilling, and roof bolt drilling

Read more ...

Epirock's Drilling Rigs, Rock Drilling Tools, Truck, Loader & Cutters

Epirock's Drilling Rigs, Rock Drilling Tools, Truck, Loader & Cutters

Mandy Che, Managing Director of Epiroc Mining India Limited speaks about the growing business opportunities in India. Epirock offers drilling rigs, rock drilling tools, dump trucks, loaders, haggloaders, hydraulic breakers, bucket crushers

Read more ...

Piling Rigs: Casagrande, Sany, Liebherr & Schwing Stetter Insights

Piling Rigs: Casagrande, Sany, Liebherr & Schwing Stetter Insights

Manufacturers of piling rigs are looking to introduce newer, more digitized products, while keeping prices competitive, as large-scale development of transportation infra projects in India drives demand. Casagrande, Sany Heavy Industries, Liebherr

Read more ...

PRD Geotechnical Drills Rigs: Compact Yet Powerful

PRD Geotechnical Drills Rigs: Compact Yet Powerful

Complete your geotechnical investigations and expand opportunities for handling multiple types of jobs to increase your profit potential by using compact, yet powerful PRD Geotechnical Drills.

Read more ...

Piling Rigs: Casagrande, Sany Heavy Industries & ACE

Piling Rigs: Casagrande, Sany Heavy Industries & ACE

Buoyed by projects in roads, metro rails and other infrastructure developments, there is renewed activity in the foundation and piling equipment industry with manufacturers and distributors like Casagrande, Sany Heavy Industries & ACE offering

Read more ...

Basement Construction by Casagrande Diaphragm Wall Machines in Gujarat

Basement Construction by Casagrande Diaphragm Wall Machines in Gujarat

Casagrande leads in basement construction in Gujarat, offering superior diaphragm wall machines for quality excavation and meeting strict specifications.

Read more ...

IMT S.p.A. unveils 'Made in India' AF 125 Piling Rig at partner GMMCO's facility

IMT S.p.A. unveils 'Made in India' AF 125 Piling Rig at partner GMMCO's facility

IMT, one of the global leaders in piling rigs, has launched its AF 125 piling rig. Made in India for the Indian market, this 125 KN torque capacity rig was unveiled to customers on 27 Nov 2018 in an event organized at IMT's partner, GMMCO's

Read more ...

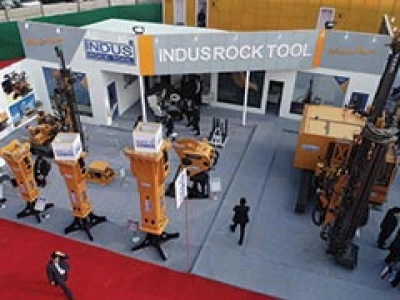

Indus displays new hydraulic rock breakers and surface drills
